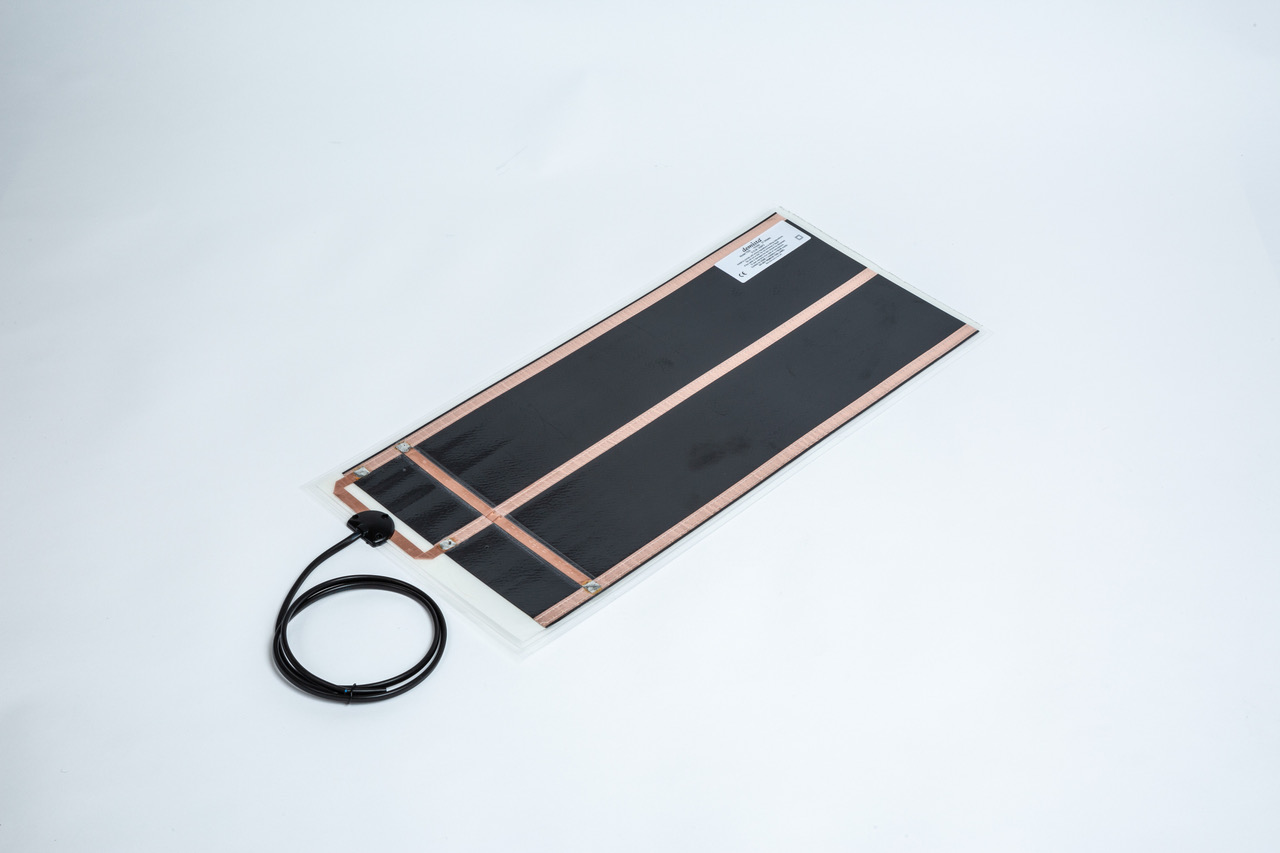

Demista 24V Heated Mirror Demister Pad 274 X 150

Model Number: 7205

Slim 24V mirror demister pad with fast heating, keeping mirrors clear and fog-free.

SAR 0.00

Technical details

  • Approved toEN60335-1:2002+A1,A2,A11,A12,A13,A14,A15 and EN60335-2-30:2009+A11
  • Power Rating200W/m2
  • Standard Voltage24V AC
  • Insulation Class2-double insulated
  • Thickness1 mm
  • IP Rating44
  • Cable connector30 x 40 x 5mm
  • Cable1m twin core 1.0mm2 oval
  • Adhesiveacrylic
  • MaterialDouble insulated multi-layer polyester/polyethylene
  • Mirror temperatureApproximately 10 -15oC above ambient room temp.
  • Heating time3-5 minutes to start heating the mirror (depending on ambient room temperature)
  • Heat spreadApproximately 30% area around the pad

Product Description

High-performance mirror demister heating pad designed to prevent fog and maintain clear visibility in humid environments. Operates at safe 24V AC, with double insulation and fast heating within 3?5 minutes, delivering reliable and efficient performance for bathroom applications.

Glass building exterior

Spec & Technical Data

Demista? Model Number : 7205
Nominal Power (Watts): 7
Dimensions (mm): 274 X 150
Resistance range (Ohms): 87.5 ? 102.4
Current (Amps): 0.28
